Partner with MCRAY XTEND
The Future of Drone Manufacturing Starts Here.
MCRAY XTEND is building a next-generation ecosystem where global defence technology meets Indian manufacturing scale.
Indoor Precision operations
Precision strike in dense urban and indoor environments. GNSS-denied, mesh-networked, XOS-powered. Built to meet threats that don’t yet exist.
3 DRONE
Mesh
1.1/0.5
LBS/KG max payload
GNSS
Denied flight
IMPACT
Resistant
Wide-View
Day/Night Sensor
Wide-field imaging sensor delivering enhanced situational awareness in all lighting conditions.
Multi
Payload Hub
Wide-field imaging sensor delivering enhanced situational awareness in all lighting conditions.

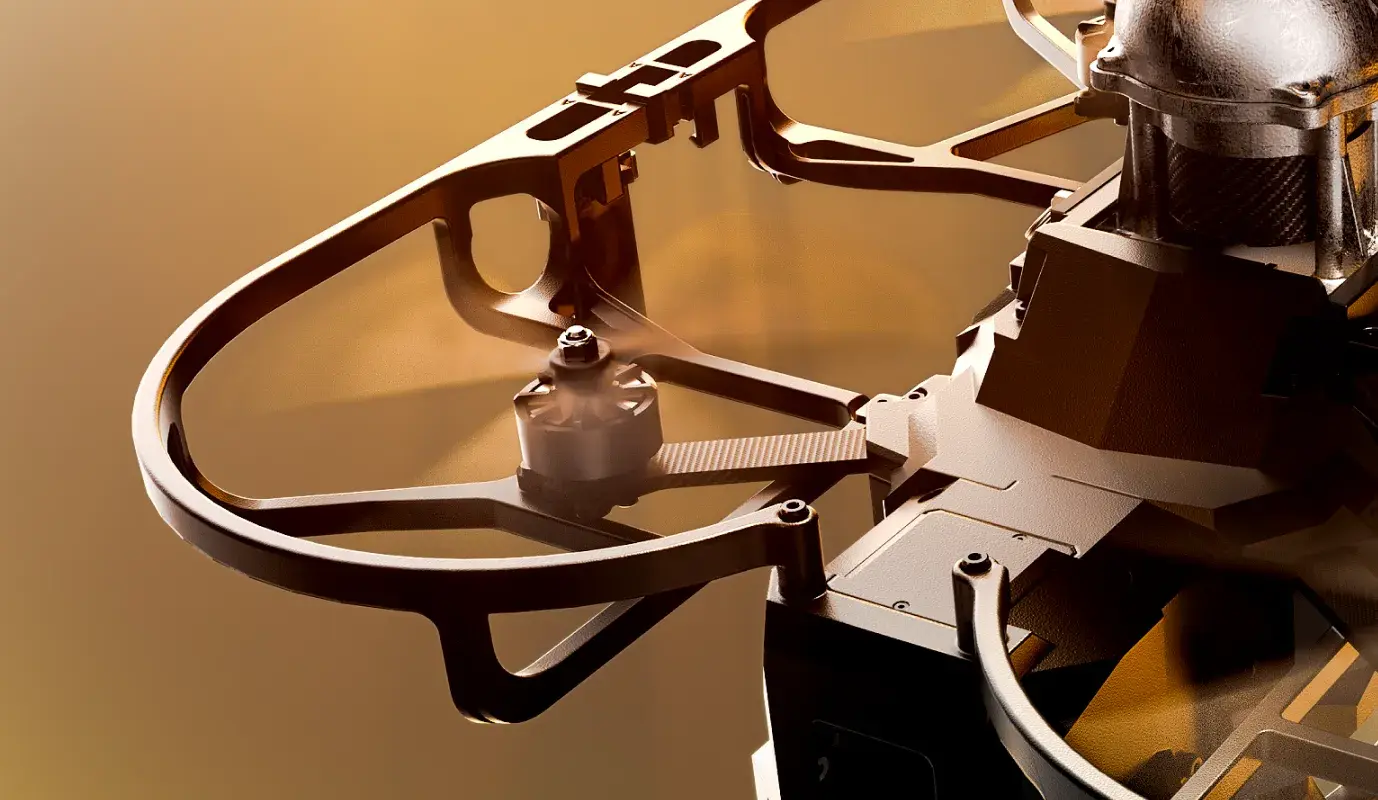

Prop Guard
Shield
Durable protection enabling safe operations in confined or complex environments.
GNSS
Denied Sensor

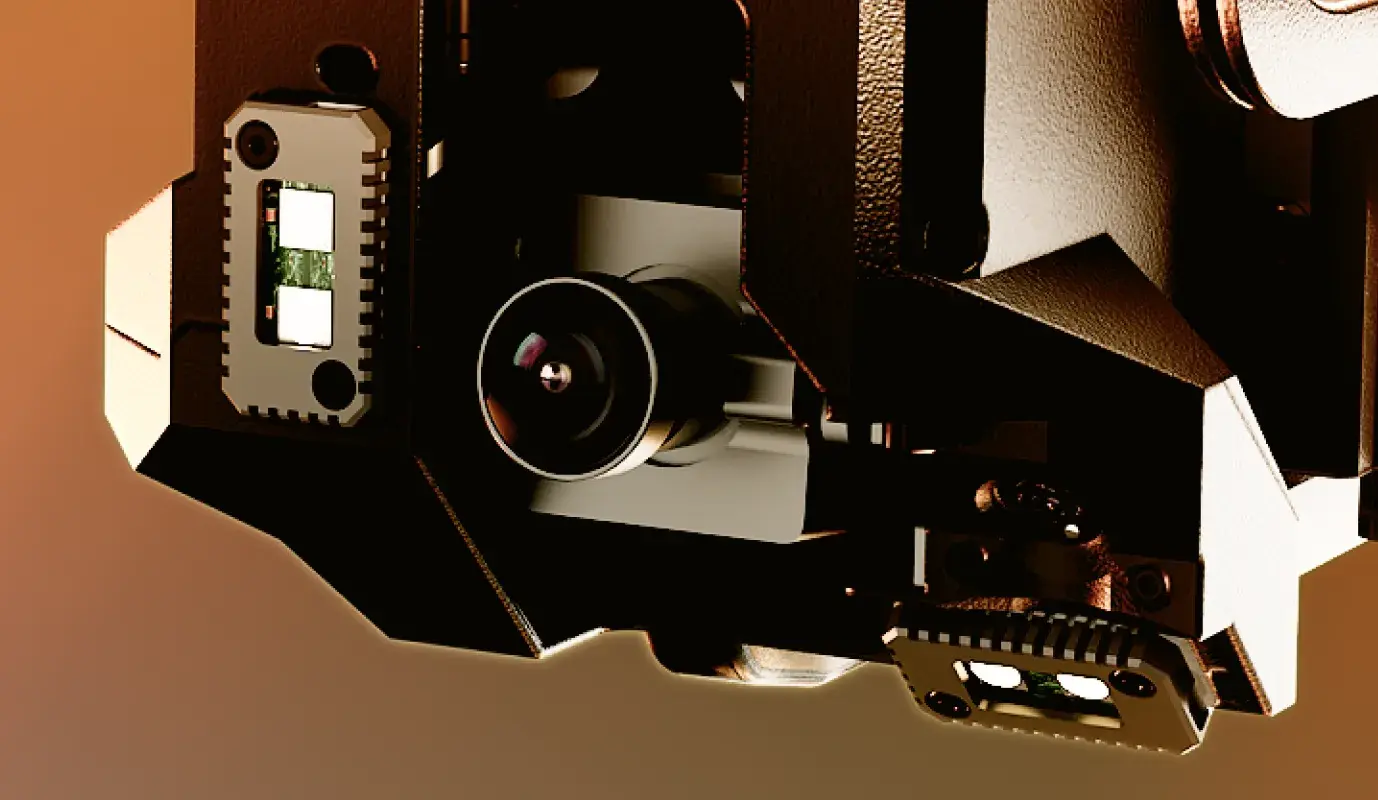

Equipped with advanced optical-flow and fusion sensors enabling precise flight & stable hovering even in GPS-denied environments.
AIRCRAFT
Frame Size
17 x 17.6 x 5.8 in / 43 x 44.8 x 14.7 cm
Weight
4.6 lbs / 2.1 kg
Max Payload Weight
1.1 lbs / 0.5 kg
Boot time
Under 40 sec
PERFORMANCE
Max Speed
25 MPH / 40 KPH
Flight Time
15 min
Gust Endurance
15 knots
Range
Over 3 mile / 4.8 km
COMMUNICATION
Encryption
256 AES | Sense and avoid
Communications
1.980 - 2.7 GHz
TAK Interface
ATAK - RTSP - C2 API
Optic fiber
0.6 MILES / 1 KM
Features
Skid
Drift across floors
Dynamic Launch
Ground / Hand / Air
Auto recovery
From back or wall
